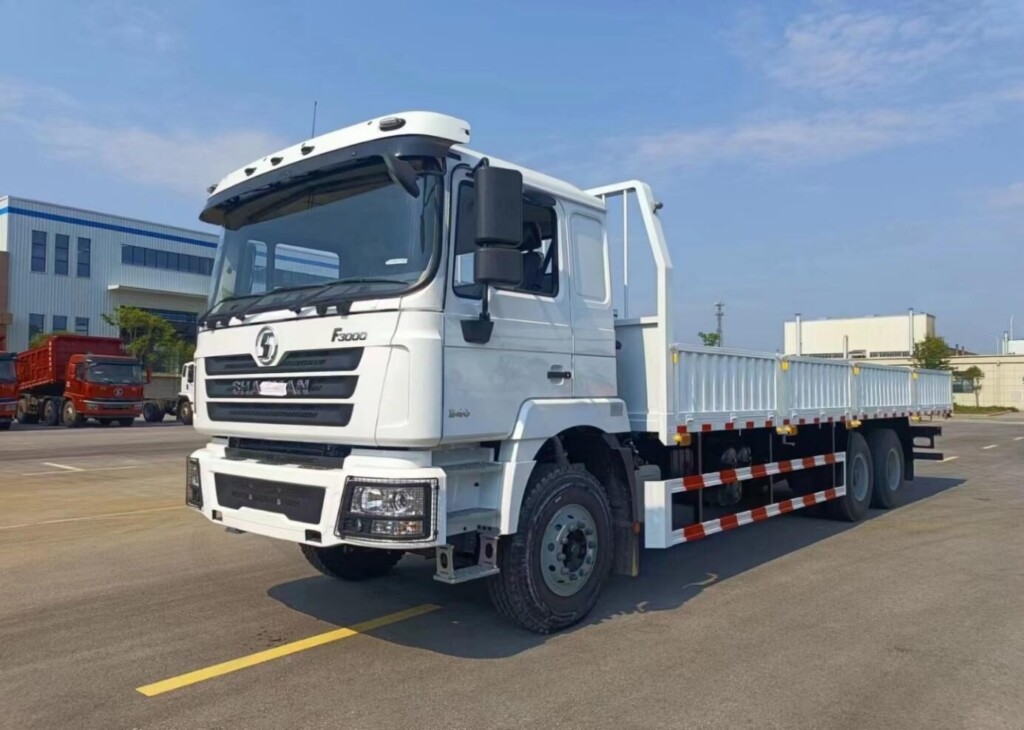

Model：SX1255DN564
Series ：F3000
Overall dimensions (L×W×H)：
about11400*2490 *3450mm
| Driving type | 6 ×4 |
| Model | SX1255DN564 |
| Engine | Model: WEICHAI WP10 300E22 ,Euro II |
| max. output power(kw/hp):221kw/300hp | |
| rated speed(r/min):1900 | |
| Maximum torque: 1390N.m/ 1200r/pm | |
| Supercharger intercooled engine, six-in-line | |
| displacement: 9.726L | |
| compression ratio: 17:1 | |
| Clutch | φ430 |
| Transmission | Fast 10JSD180, 10 forward and 2 reverse, |
| Front axle | MAN 7.5T |
| Rear axle | MAN 16T double reduction drive axle, ratio=4.769 |
| Fuel tank | 400L |
| Steering | ZF technology |
| Brakes | Running brake: Dual circuit compressed air brake |
| Parking brake: Air discharging with spring control | |
| Auxiliary brake: Engine exhaust brake | |
| WABCO valves | |
| Wheels and tires | 13R22.5, 11ps tires |
| Cabin | F3000 cabin, Two seats, one sleeper, with A/C |
| Electrics | 24 volts. |
| Battery:165Ah | |
| Air horn, headlamp, fog light, turning light, reverse light | |
| Cargo | Without |
| Dimensions（mm） | wheelbase:5600+1400 |
| Front overhang(mm):1525 | |
| Rear overhang(mm):2900 | |
| Overall length(mm):11400 | |
| Overall width(mm):2490 | |
| Overall height(mm):3450 | |
| front axle laden mass:7500Kg | |
| rear axles laden mass: 2*16000 Kg | |
| Performance | max.speed(km/h):90 |
| Economic speed(km/h):50-65 | |
| Minimum ground clearance(mm):330 | |
| max.gradeability:20% | |
| GVW≤35T | |
| Others | Manual window lifter |
| Steel bumper | |
| Four-point hydraulic suspension cab, hydraulic seat | |
| Radiator protect, front and rear light protect | |
| Desert filter | |
| Triangle | |
| Jack | |
| Tool Kit |
Our main business includes:oil products, SHACMAN trucks, sprinkler trucks,oil tank trucks, SHANTUl bulldozers, roadrollers, loaders, graders, ClMC low flatbeds,semi trailers,Zhong tong buses and ather largenechanical equipment, as well as relatedperipheral products such as oil products andaccessories.
