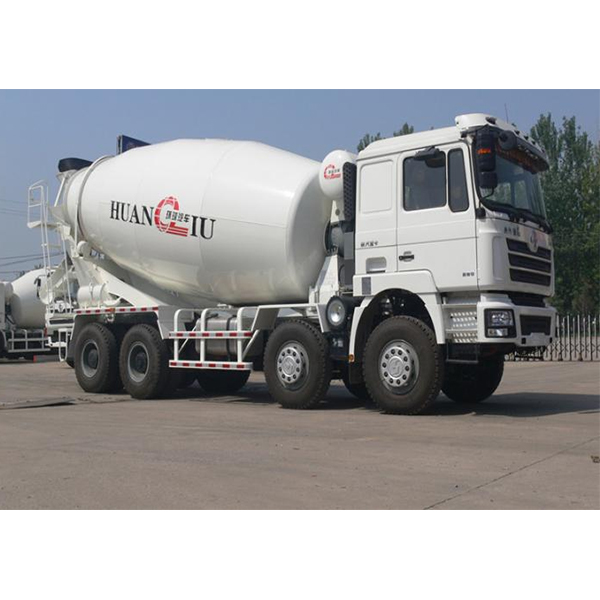

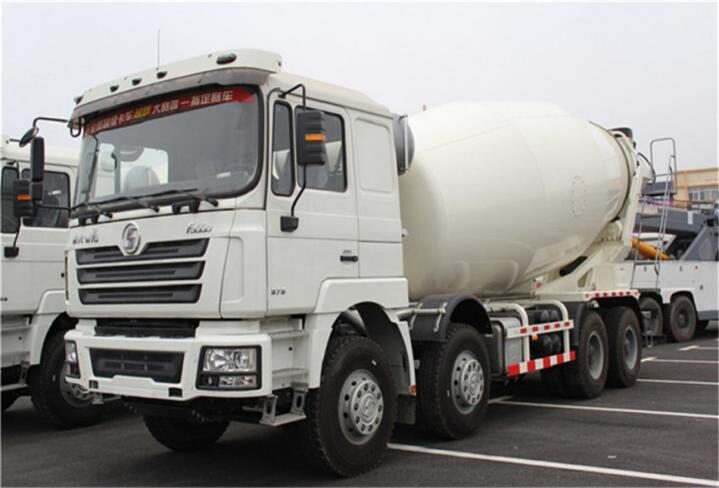

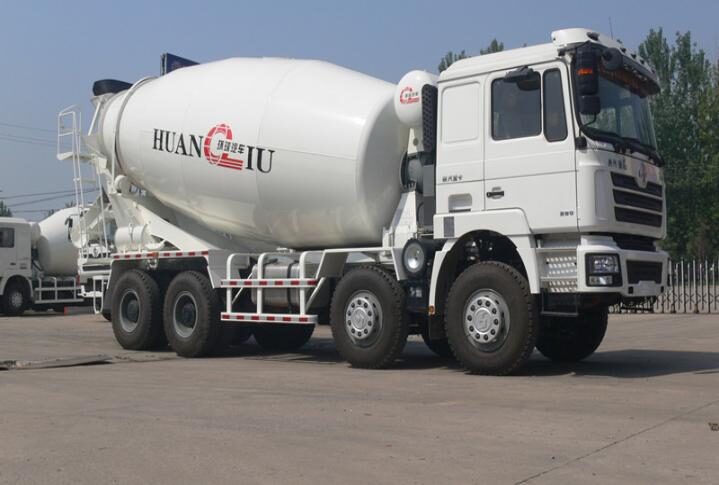

Model：SX5315GJBDT306
Series ：F3000
Weight：45000KG
| Model | SX5315GJBDT306 | |
| Series | F3000 | |
| Driving form | 8X4 | |
| Driving mode | LIFT HAND DRIVE | |
| Appearance dimensions | Max. Length | 10000mm |
| Max. Width | 2550mm | |
| Max. Height | 3450mm | |
| Wheelbase | (1800+2975＋1400） mm | |
| Front/Rear overhang | 1525mm/1700mm | |
| Weight | Curb weight | 10600KG |
| GCW | 45000KG | |
| Transmission | Model | 10JSD180 |
| Forward/Reverse gear | 10Forward,2Revers | |
| Max. Torque | 2200N.m | |
| Ratio | Forward：14.86, 11.02, 8.07, 6.02, 4.46 ,3.33 ,2.47, 1.81, 1.35, 1 | |
| Revers：14.24 ,3.19 | ||
| Engine | Model | WP10.380E22＋PTO（Euro2），WEICHAI |
| Rated output power Rated speed | 280KW 2200RPM | |
| Max. Torque | 1600N.M | |
| Economic speed | 1200-1600RPM | |
| Displacement | 9.726L | |
| Frame | 850×300（8+7）mm | |
| Cab | Model | F3000 Mid-length flat roof cabin, two seats, one sleeper, Manual windows lift, with A/C; |
| Suspension | Front Suspension | Multiple leaf spring |
| Rear Suspension | Multiple leaf spring; Four horseback bolts | |
| Axle | Front axle | MAN 9.5T |
| Driving axle | MAN 16T 5.262 double reduction | |
| Tyre | Type | 13R22.5 |
| Fuel tanker | Capacity | 380L |
| Others | Metal bumper | |
| Hydraulic main seat | ||
| SHACMAN logo | ||
| 165Ah battery | ||
| Desert air filter | ||
| Spare Tire Rack | ||
| Four-point hydraulic suspension cab | ||
| Fill rate % | 67% | |
| Feeding speed m3/min | 3.5m3/min | |
| Discharging speed m3/min | 2m3/min | |
| Residual Rate % | 0.50% | |
| Slump mm | 20-220 | |
| Mixing drum speed range rpm | 0-16 | |
| The inclination angle of the mixing drum ° | 11.5° | |
| The maximum diameter of the mixing drum mm | 2450 | |
| The length of the straight section of the mixing drum mm | 1150 | |
| The length of the mixing drum mm | 5874 | |
| Mixing drum material | δ6.0/Q355 | |
| Header I | δ8.0/Q355 | |
| Header II | δ8.0/Q355 | |
| Mixing drum drive system | Reducer model | PMP |
| Oil pump model | PMP | |
| Hydraulic motor | PMP | |
| Water supply system | Water tank volume L | 450L |
| Water supply method | Air pressure |
